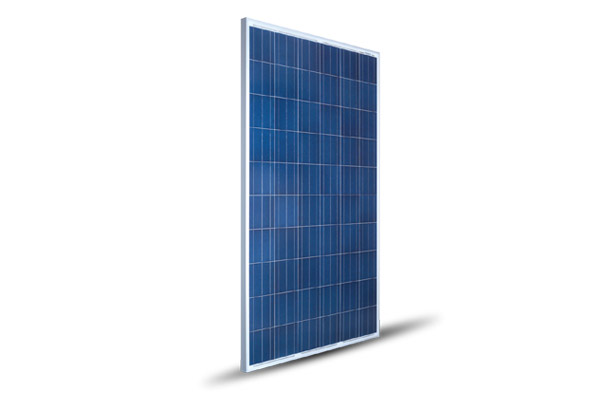

Crystal Solar Energy is a legendary manufacturer of poly crystalline solar panel, Solar Power Conditioning Unit is a consequence of the team endeavor to introduce a cost efficient alternative to mono crystalline solar panel having at par working principle. However, this poly crystalline solar panel is made of the silicon fragments to form wafer for a panel rather than single crystal of silicon used in the mono crystalline, is a cornerstone of the significantly reduced cost of this poly crystalline solar panel. This poly crystalline solar panel is available in extended range and is too certified to operate under harsh environment conditions, is highly accepted in the several industrial and residential applications where average amount of power is adequate and cost is a constrain.
| Maxpower (W) | No.of Cell | Dimension (mm) | Cell Efficiency | Module Efficiency | Weight (kg) | Max Current (Imax) (A) | Max Voltage (Vmax) (V) | Short Circuit (Isc) Current(A) | Open Circuit (Voc) Voltage(V) |
|---|---|---|---|---|---|---|---|---|---|
| 320W | 72 | 1961 x 991 x 35 | 18.29% | 16.47% | 21.50 | 8.29 | 38.59 | 9.12 | 45.72 |
| 315W | 72 | 1961 x 991 x 35 | 18.00% | 16.36% | 21.50 | 8.24 | 38.23 | 9.06 | 45.50 |
| 310W | 72 | 1961 x 991 x 35 | 17.71% | 16.10% | 21.50 | 8.19 | 37.87 | 9.00 | 45.36 |
| 300W | 72 | 1956 x 991 x 35 | 17.30% | 15.58% | 21.50 | 8.02 | 37.58 | 8.82 | 45.00 |
| 250W | 60 | 1641 x 991 x 35 | 17.30% | 15.52% | 18.50 | 8.06 | 31.32 | 8.86 | 37.62 |
